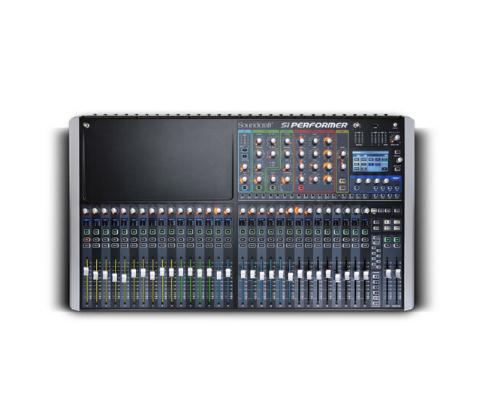

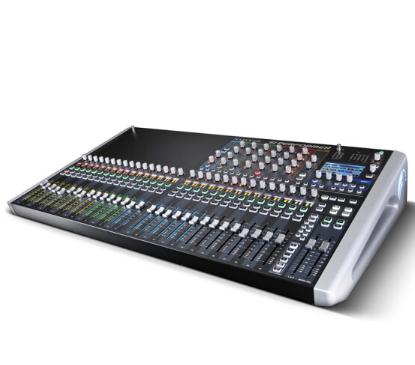

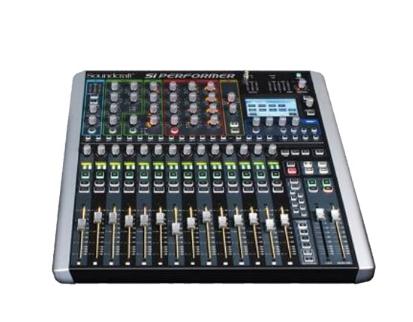

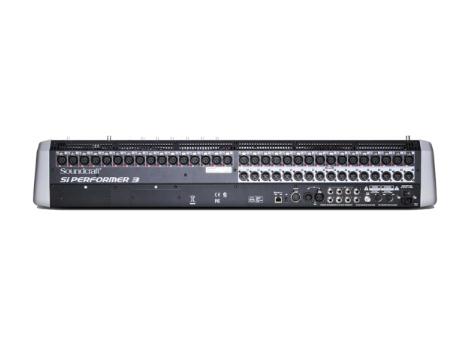

Soundcraft

In 1973, it was discovered that the Soundcraft, which was first used to make it in the beginning of series 1, was first mixed in the flightcase console. In the early years of 70s, on the back of the music tour business is indeed the early - and transportable hybrid desk quickly became popular in the band and the new PA company that is jumping out to rent out the sound device.
Share：

Similar products

Return to product list
Product Description

Soundcraft was founded in 1973. At the beginning of the 1970s, the music market has just started, and the mobile mixer was quickly welcomed by the popular band and the PA company, which is engaged in audio equipment leasing. After years of development, Soundcraft has grown from a small company in central London to a diversified enterprise. The design of the 2 series recording mixer has become one of the classic products. Design and innovation has been one of the main advantages of Soundcraft, and has developed and produced a series of mixer products. Today, Soundcraft has become a member of the Haman group, products all over the world.

Main features:
Work condition monitoring of multipoint signal channel ratio method (light LED microphone and microphone, EQ and post fader)
Fine, super linear GB30 microphone preamplifier
Provide professional +48V phantom power supply for condenser microphone
Provide professional insertion points for external signals
6 road, 8 road and 12 mono input and 2 stereo input
2 aux sends all can switch to pre / post fader
Internal power supply
Simple optional rack mount

technical specifications
Frequency response: MIC / line input to any output, 20Hz20KHz + 0.5dB
Total harmonic distortion and noise: - 30dBu input to mixer, microphone gain 30dB, <0.007%
The equivalent input noise of microphone input: 22Hz22KHz unweighted, 128dBu
(source impedance 150).
Bus noise: 20Hz20KHz broadband line input terminal load is 150 RMS (RMS) measurement.
Mix: Remix fader below, the maximum level, <85dBu
Channel crosstalk between channels: mute, >96dB; fader position (mark +10), >96dB;
Aux send port, >86dB.
Input and output impedance: MIC input, 2.4K; line input, 11K; stereo input, 100K; output, 75.
Input and output level: maximum input level mic / line is +17dBu; the maximum input level line +30dBu; stereo input level +30dBu; the maximum mixing output level +20dBu; headset maximum output level of 300mw/200.
EQ (mono input): HF (high frequency): 12KHz + 15dB; MF (MF): 140Hz3KHz, + 15dB, Q=15; LF (low frequency); 80Hz + 15dB.
Output level table: L and R mix output level meter for the 12 meter LED.
Working conditions: temperature range: - to +30 DEG C; relative humidity: 0% ~ 80%.
Power supply: integrated light switch power supply; AC input: 85V ~ 270V, 50/60Hz.
Power consumption: less than 20W
